SECURITHOR

SECURITHOR
is MCDI newest software for Central Monitoring Stations. After 19 years of developping SAMM and WinSAMM, we are moving to SQL database and coming up with a totally redesigned Monitoring Software. With an extraordinary Graphical User Interface, operators will be at ease with SECURITHOR and retraining will be minimized since we kept alarm processing compatible with SAMM and WinSAMM. Now available in Danish, English, French, Italian, Portuguese, Russian and Spanish.

Available in two versions:
-ST1 Securithor single station, unlimited accounts
-STS Securithor Network Edition.

Modules:
-Web Access Module
-STM Web Viewer
-APS Virtual Panic button for Android Phones
-PPP Virtual Panic button for PC

Get SECURITHOR brochure or visit
securithor.com for comprehensive description and trial download.

*special April promotion only available from MCDI and selected distributors.



WAM

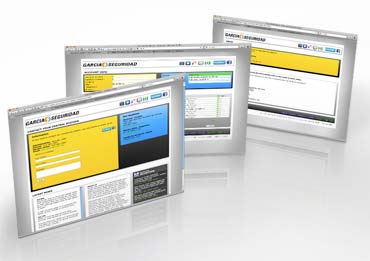

WAM - Web Access Module for SECURITHOR Now available

Enhance your SECURITHOR with this new module allowing subscriber to access some of your SECURITHOR data such as armed/disarmed status, recent alarm history, service orders, next schedule event.

With web pages made for iPhone or Android phones as well as desktop web browsers, you can now offer new services to your customers with this module for web servers.

Dealers/Installers can review their account groups on the desktop versions.

Includes STM for Monitoring station Staff.

Contact MCDI to discuss web hosting requirements for your Central station. New hosting plans for small size Central station. Contact SECURITHOR staff!

APS Android
PPP

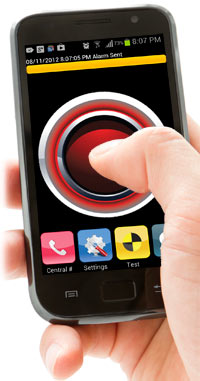

APS - Mobile Panic Buttons for Android phones
With APS module for SECURITHOR, Central stations can receive panic button signals with Geo Location from subscribers with Android phone.

Subscribers press predefined panic button on their phones to transmit panic signal and gps coordinates over IP or SMS. Once pressed the gps coordinates are sent continuously in 'follow me' mode. Central station operators get geolocation along with alarm event and can view subscriber's position in Google Maps.

APS app permits test signals and periodical autotest. Subscriber can test without Central's operator intervention using emailing function.

MCDI managed server enables autofill of configuration for every subscribers for fail proof configuration of phone apps.

APS app royalty free for subscribers.

**Requires installing application on phone. May not be compatible or tested on all phones. Phone must provide GPS and GSM with internet coverage for reliable transmission.
Add-on module for ST1 and Network edition
Not available to Carabean Islands.
SMS receiving requires third part sms modem not included.

PPP Panic Button Program for PCs

With PPP, Central stations can distribute Virtual Panic buttons for PCs to all subscribers. Panic Buttons applications are supplied with PPP and installed in Subscriber's Windows PC.

Subscribers just need to press their secret keyboard combination and a Panic Signal is sent silently over IP to the Central. Many Virtual Panic Buttons can be installed at the same location. PPP makes it easy to configure and distribute a Panic button app personalized for each subscriber. Information to reach the Monitoring Station is already filled by the packager.

PPP is an add-on module for ST1 and included in ST Network Edition


STM

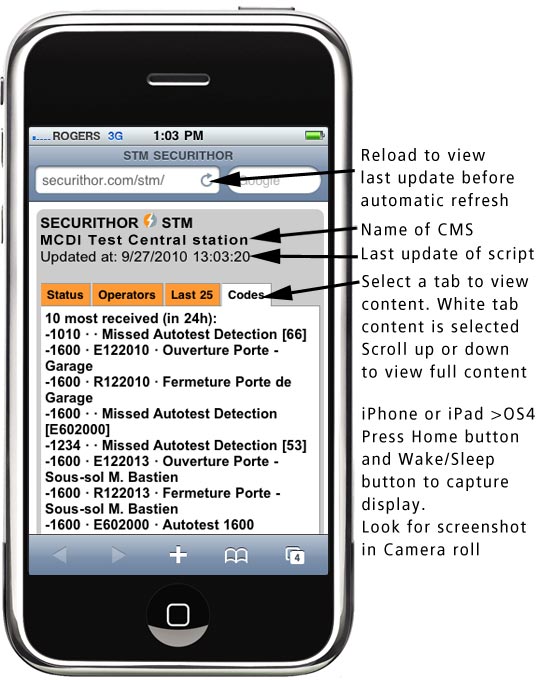

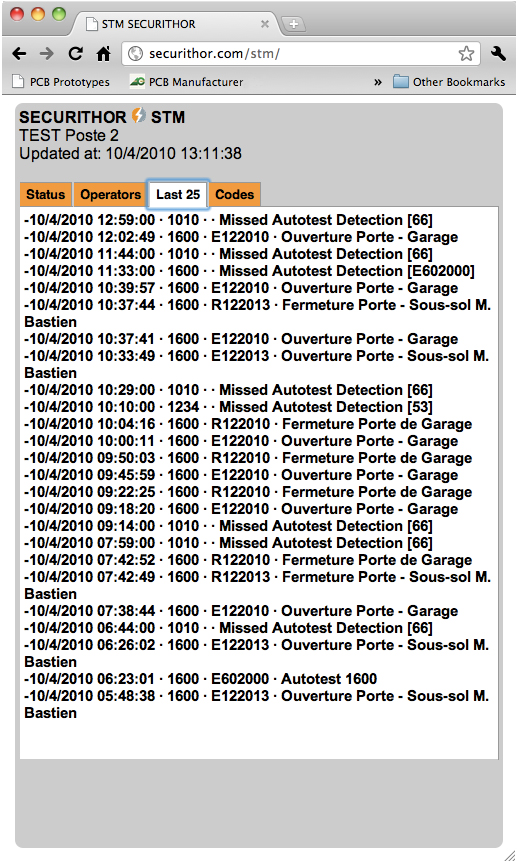

STM mobile web viewer for SECURITHOR

STMST Network Edition comes with STM - Securithor Mobile Viewer - a unique feature for supervisors who want to be updated on ST status. Supervisors can access status of SECURITHOR on web enabled mobile phone such as iPhone or web browsers from anywhere with internet connexion.

This light web based tool can be hosted easily on your ARC's web site or you can receive free complementary hosting on securithor.com.

Check graphical simulator for iphones or web browsers. Mobile view requires a handheld device with 320px width and web access. Desktop viewing requires compatible browser (IE 8+, Firefox 3.5, Safari 4, Google Chrome). STM is included in SECURITHOR Network Edition and a paid option in ST1 single station. Now available. Contact MCDI Sales to add STM to your ST1.

Go to SECURITHOR.COM for more info, videos, brochures and free trial download. Register by sending us your email to receive our SECURITHOR newsletters.






DECRYPTA 5

Newly added: Web based configuration now available for D5. Emailing of internal messages and Daily status report to 4 addresses now integrated in D5.

MCDI is coming back to high volume solution: Decrypta 5. Real space saver yet power house: 6 lines in just one rack-mount height (1.75 inches). Based on the Extrium cpu, this alarm receivers comes equipped with dual power source management as well as internal rechargeable lithium-ion battery. D5 reports over IP, serial and USB outputs. Remote configuration over web in French, English, Russian and Spanish.

Best design you can get in an rackmount: fan-less design for reliability and drawer design for easy access to components without tools.

D5 available as RoHS Compliant for Europe or non RoHS compliant for Americas.


D5 sales brochure in pdf

RoHS COMPLIANT standard for Europe, Turkey and China.

RoHS COMPLIANT on order for Asia, Africa and Americas
.



logo_extrium

extrium_db

ipad

EXTRIUM receivers
The Extrium family: a new box and a new CPU for Extreme design and performances.

Extrium :: DB Hybrid Receiver PSTN + IP receiver
Know it all with this complete solution: Internal 4000 accounts SQL Database lets you see name, account, phone number, alarm description and action to take right on the front LCD or in web browser. Ideal for Guard booths, Security offices, Nurse Wards or College Campuses.

Embedded web server allows web viewing of traffic, database configuration. Guards can view traffic and account info online using iPad, netbooks or intelligent phones.

Manage legacy receivers! Extrium cpu serves as an alarm router and can handle 2 traditional receivers connected over serial ports. Adds IP capacity and redundancy management to an old 24 or 30 lines receiver. Extrium will display account and alarm code descriptions even from external receivers.

Special extended version with IP receiving for Paradox IP, Roel,3i IP/GPRS and SIA DC-09 alarm formats on order.
Tested with many communicators from various companies such as Telesignaal, Paradox, 3i and T.E.L.L.

Extrium :: concentrator
All display options of Extrium::db available on front display or through web viewer. Available without internal receiver line card. IP receiving with redundancy management for legacy receivers.Extends alarm event description to external receivers.

Ideal if you already have a legacy alarm receiver. Connect it to Extrium to get enhanced features such as description, web viewing and IP reporting.

Special extended version with IP receiving for Paradox IP, Roel,3i IP/GPRS and SIA DC-09 alarm formats on order.
Tested with many communicators from various companies such as Telesignaal, Paradox, 3i and T.E.L.L.

Extrium :: voip
Extrium::voip gives voip capacity to Listen-in and 2 way voice signals. Receivers answers alarm panels but will keep the line open when receiving audio signal. This signal is converted to SIP protocol so Extrium can forward audio signal directly to the operator's PC or SIP phone extension. Operators can then benefit from SIP/Asterisk flexibility to transfer calls or record them.
Extrium_voip

Internal 4000 account database and embedded web server make it easy to view account, alarm code description through front display or from connected web browser. Guards or nurses can even view all account data on tablet device such as iPad.

External legacy phone receiver can be connected to extend capacity. Connect them to Extrium to get enhanced features such as description, web viewing and IP reporting.

Extrium DB brochure in pdf




D4



DECRYPTA 4

This totally new design now shipping. Replacing legenday D3, the new D4 picks up D3 features plus new ones.

A new design with a graphic LCD let's you see all key status at a glance. Eexpanded events memory to 4095 events with fast scroll on front display. Individual receiving configuration for both lines, ETSI and Bellcore caller ID. Configurable handshake sequence and fast answer mode.

Two outputs (USB+Serial), two power inputs with automatic roll-over for more than one week autonomy on battery*, configuration by front display or by connected PC. Relay port on backplate. Outputs to POS printer of EPSON TM-88 family or to supplied windows logger supplied.


Compatible with MCDI'S STM** Mobile web viewer to view events on iPhone or Android phone

2 way audio handling for Tunstall TTnew, Contact ID, SIA and Pulse alarm formats with programable time out.

Receives more than 20 alarm formats to cover most panels on the market. Reports to most Monitoring software in the market.

Comprehensive displays allows set-up from front display in Deutsch, English, Espanol, French, Italian, Português, and Russian. PC Configuration tool adds Arabic and Farsi.


RoHS
compliant version for Europe, Japan and China and Turkey.


D4brochure in pdf

*24 hours, 7 days, two events received per minute with a 12V 70AH battery, no printer connected.

**Requires purchasing STM and installating on windows computer with access to internet. Requires web hosting arrangements. MCDI supplies ftp space free with purchase of STM.



Exprecium D
RoHS compliant

This new version of Exprecium is made to meet RoHS directive for Europe, Turkey, China and Japan)
i.e. this environmental friendly version is made without Lead (PB).

Features:
.2 independant phone line.
.Recognizes more than 20 alarm formats
.Fast handshake mode with fully configuratble handshake sequence
.Caller ID
.Listen-in and 2 way voice programming
.Large 4095 events memory buffer
.Multi-Language configurator
.Traffic viewer included
.USB and serial output to PC
.Draws power for PC's PCI or PCI-E bus.
.Battery port to extend uptime to several days
.On board realy to trigger external devices (sirens, lights, etc...)

New programming included for compatibility with Extrium family 2 way voice features and frequency response section redesigned! Ed also includes a filter specially designed to meet JATE specifications for Japan telephony.

RoHS compliant model now includes TTnew format from Tunstall. Our output format let's you handle TTnew with regular Monitoring sofware such as SAMM,WinSAMM and SECURITHOR.






LEGACY PRODUCTS
DISCONTINUED

DECRYPTA 3
Product replaced by Decrypta 4

All D3 receivers manufactured can connect to Extrium::db, Extrium::voip or Concentrator to add 2 lines to Extrium. Accounts, alarm codes description can be viewed on Extrium display or web site as it from internal line cards.


Based on legendary D2. Of course we could not resist adding more features. 9 status leds, double supply feed supervision (roll-over between power supply and external battery). New brighter LCD for easy reading.

D3 is made with the same case as the Extrium family to be included in servers-PC or used as a desktop unit. See it in action in the following animations:
Check how D3 can go from desktop to inserted in a PC!
See D3 stacked and a front to rear view.

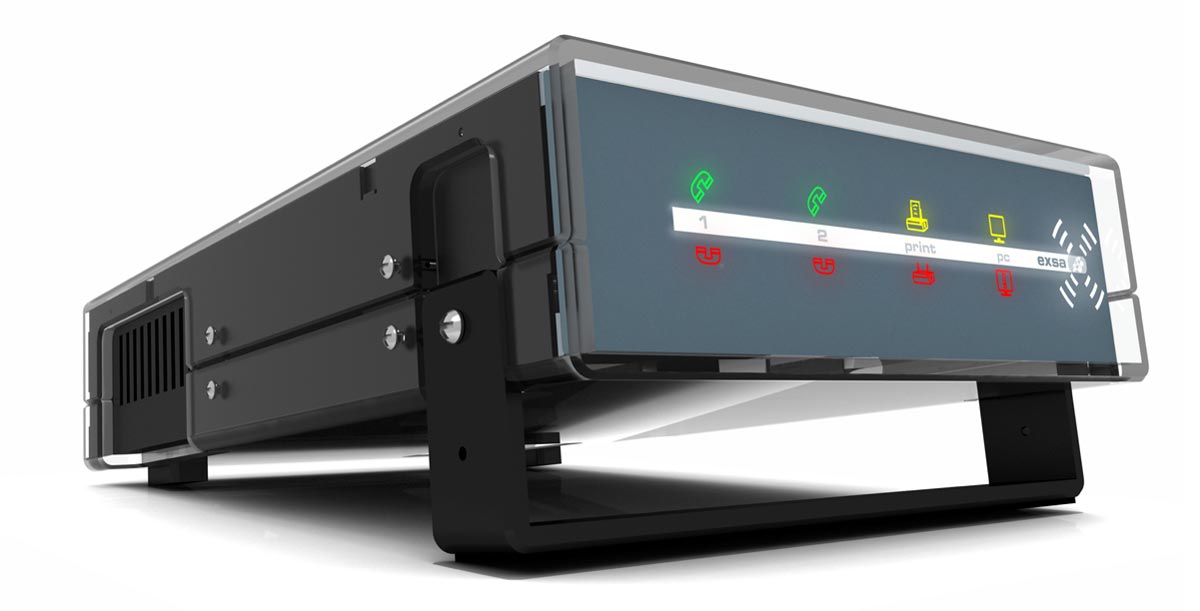

EXSA basic 2 phone lines receiver
Product replaced by Decrypta 4

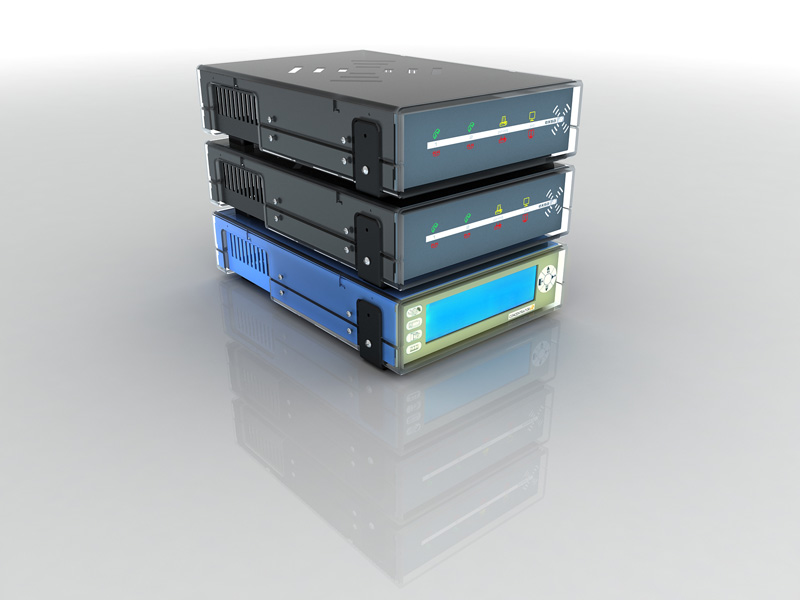

All EXSA receivers manufactured can connect to Extrium::db, Extrium::voip or Concentrator to add 2 lines to Extrium. Accounts, alarm codes description can be viewed on Extrium display or web site as it from internal line cards.

This receiver will give you performances equal to E3 and D3 but without the configuration and display options. EXSA shares some of the features of D3 namely a dual power input with roll-over supervision between input 1 and 2, 9 status LEDS on front, serial and USB output and relay posts.


WinSAMM
WinSAMM CMS monitoring software
Central station monitoring software, Network version

WinSAMM was discontinued several years ago and support is limited. If you require unlock contact support@mcdi.com

WinSAMM is replaced by SECURITHOR. Please check SECURITHOR.COM for our new monitoring software and upgrade possibilities.

Account data, alarm codes, schedules can be imported into Securithor by MCDI.


DECRYPTA 2
Product replaced by Decrypta 4.

All D2 receivers manufactured can connect to Extrium::db, Extrium::voip or Concentrator to add 2 lines to Extrium. Accounts, alarm codes description can be viewed on Extrium display or web site as it from internal line cards.


Quicktime animated view of D2
360 view of D2
Front to back view
Superposed D2s





Product replaced by Exprecium D

The original PCI Alarm receiver on a computer card for PCs with PCI bus. 2 phone lines per board and up to 12 boards per PC. You can run a full scale Central station with exprecium or just manage your open and close monitoring.



SA-TLR+
Product replaced by Decrypta 4.

All SA-TLR+ receivers manufactured can connect to Extrium::db, Extrium::voip or Concentrator to add 2 lines to Extrium. Accounts, alarm codes description can be viewed on Extrium display or web site as it from internal line cards.


2 phone lines external receiver desktop/mobile
Full configuration even as stand alone with MRD1000

Conversion kit for TLR+ Rev. 7
kit isnot available anymore. Replacement for SA-TLR+ is the EXSA model.
